Emulsion AdhesiveCEMEDINE EM Series

Emulsion Adhesive

Emulsion adhesive is a kind of water-based adhesive made by homogeneously emulsifying vinyl acetate, EVA or acrylic synthetic resin polymers in water. Therefore, it is comparatively safe, will not catch fire and environmentally friendly.

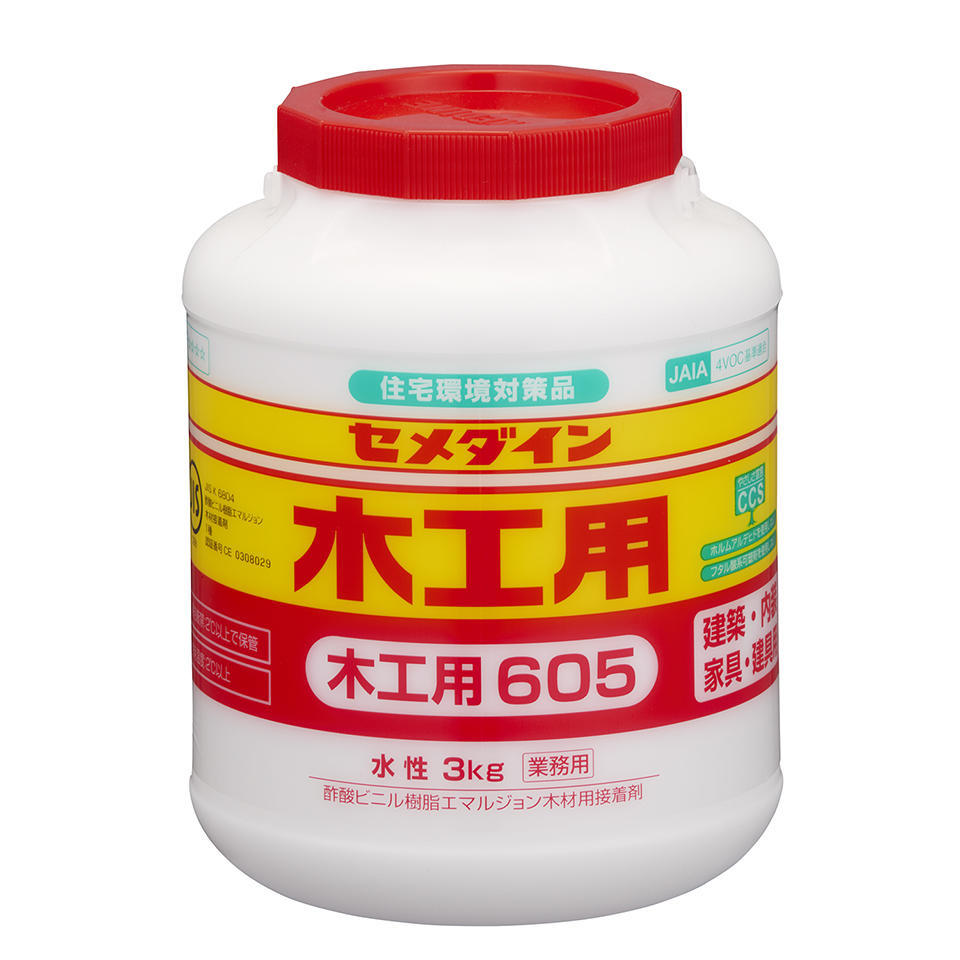

CEMEDINE 605

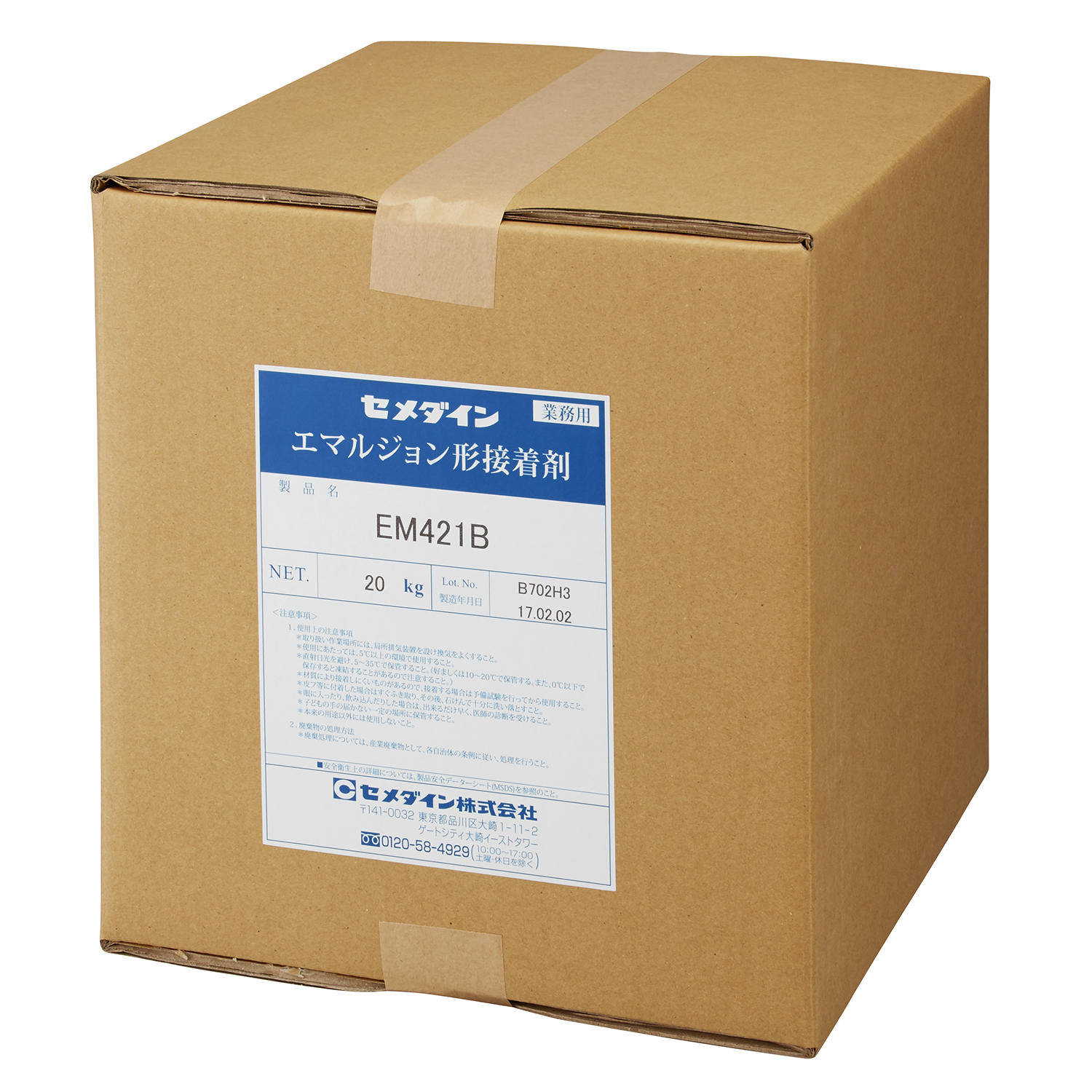

EM421B

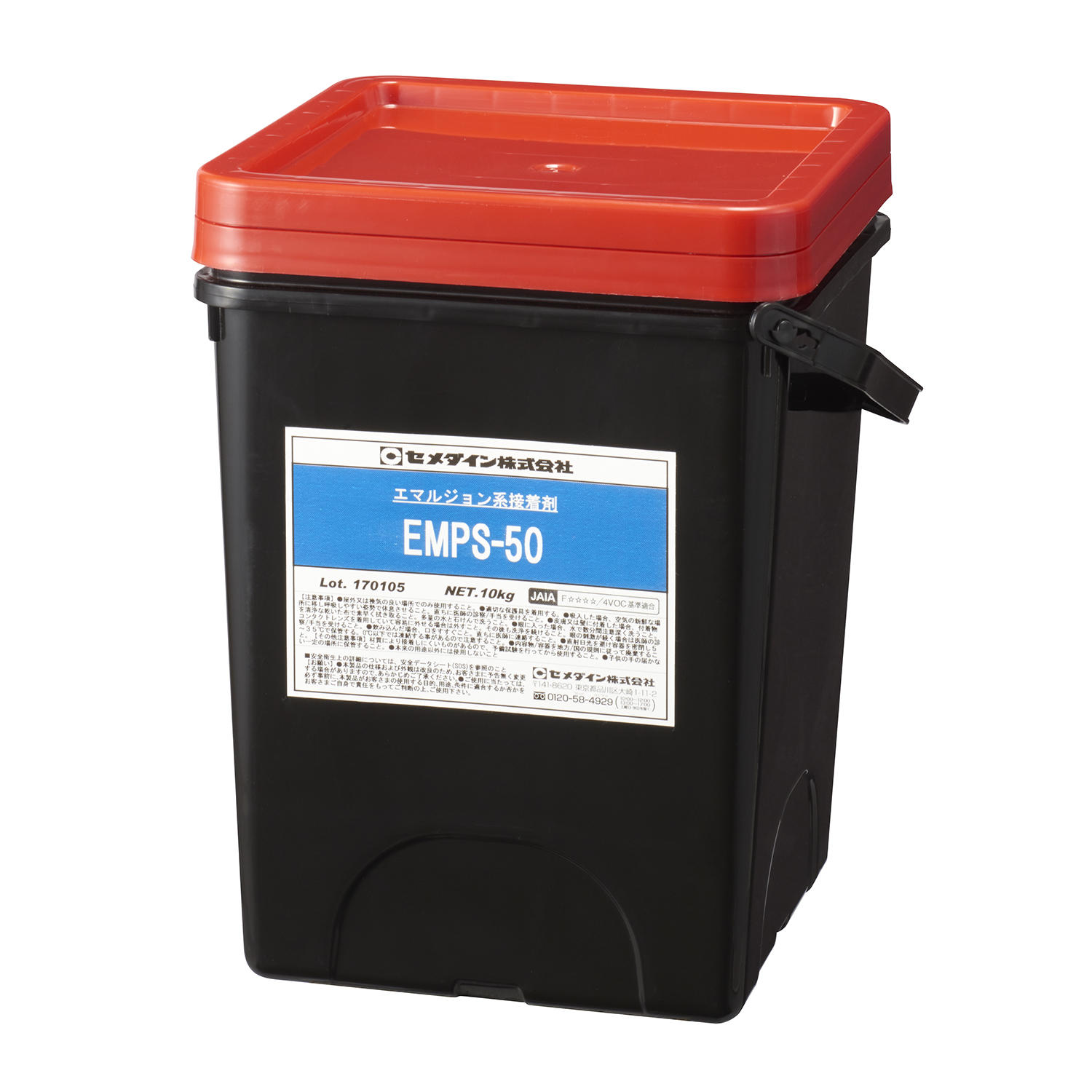

EMPS50

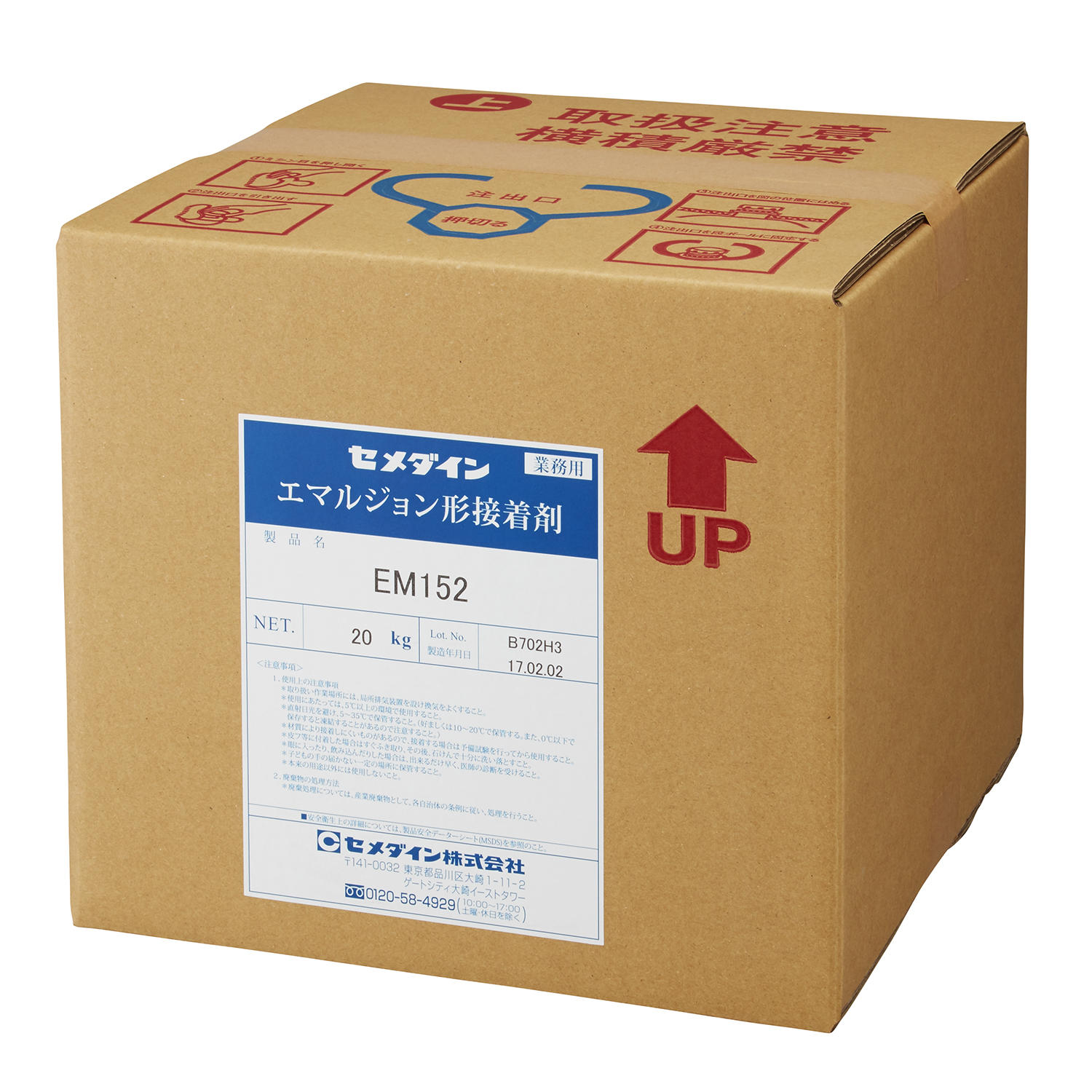

EM152

Features

  • The emulsion adhesive is generally solventless type adhesive that contains no organic solvent agent.
  • The emulsion adhesive allows extensive range of work from coating with brush to coating with machine.
  • The emulsion adhesive has better initial adhesive property than other aqueous adhesives.

Application

  • Furniture, woodworking, decorated plywood
  • Paper working, packaging
  • Decorated plywood, composite members, and panels

ONE POINT

[Pressing]
Many types of emulsion adhesives contain less resin solid. Adhesiveness is ensured by "anchoring effect" where the resin permeates the gap of the adherend to be hardened in the form of wedges. Therefore, insufficient pressing force will cause defective holes on the adhesion surface and insufficient permeation, resulting in substantial reduction in the bonding strength. Sufficient consideration must be given to determine the amount of coating, pressing force and pressing time.

Product data

Property (For woodworking, furniture, and building interiors)

  For woodworking, furniture, and building interiors
Mokukouyou 605 605H 696W EM42 EM111N Mokukouyou Sokkan 615
Application / Properties / Features For general woodworking and interior decoration, Standard For general woodworking and interior decoration, All season type For woodworking and flashing For woodworking and flashing For general woodworking and furniture For general woodworking and interior decoration Quick, drying type For wall and ceiling boards
Base Vinyl acetate
External appearance Milky white solution
Non volatiles % 41 41 35.5 41 45 56 36
Viscosity mPa・s/23°C 27,000 27,000 23,000 24,000 32,500 55,000 40,000
pH 5 5 5 5 4 5 5
Grade JIS JIS K6804 JIS JIS K6804         JIS JIS A5538
JAIA F☆☆☆☆ 4VOC JAIA F☆☆☆☆ 4VOC JAIA F☆☆☆☆ JAIA F☆☆☆☆ 4VOC JAIA F☆☆☆☆ 4VOC JAIA F☆☆☆☆ 4VOC JAIA F☆☆☆☆ 4VOC
Capacity 500g 20kg 20kg 20kg 20kg 500g 3kg
750g         750g 20kg
1kg         1kg
3kg         3kg
Check it at Online-Shop OnlineShop OnlineShop       OnlineShop OnlineShop

Description of the markexplanation

Property (For paper working)

  For paper working
EM128HK EM128LL EM139-1L EM139-2改 EM152
Application / Properties / Features For glue joints of cardboard materials For corrugated board, Low-viscosity type For paper tube, Conforms well to base paper For paper tube, Conforms well to base paper For bag making, Paper processing
Base Vinyl acetate
External appearance Milky white solution
Non volatiles % 55.0 52.0 31.5 44.0 47.0
Viscosity mPa・s/30°C 2,000 550 2,300 3,800 650
pH 4.5 4.5 5 4 6.5
Capacity 20kg/BIB 20kg/BIB 1000kg 20kg 20kg/BIB

Property (For composite construction materials)

  For composite construction materials
630 EM403 EM560 EM421B EM475W EM790A EM790B
Application / Properties / Features For paper working, Adhesion of an extensive range of materials including plastics For panels For panels For resin-coated papers, For PVC plywood For wet lamination For paper honeycomb panels EM790A crosslinking agent
Base Vinyl acetate / Maleic acid ester EVA-acryl Acryl EVA-acryl EVA-acryl Aqueous vinyl Isocyanate
External appearance Milky white solution Milky white solution Milky white solution Milky white solution Milky white solution Milky white solution Burnt brown solution
Non volatiles % 56.0 53.5 48.0 55.0 48.0 48.0 98.5
Viscosity mPa・s 19,000/25°C 8,500/30°C 14,000/25°C 11,000/30°C 2,600/30°C 11,000/25°C 1,000≧/25°C
pH 4.5 7 7.5 5 8 7.5
Grade JAIA F☆☆☆☆ JAIA F☆☆☆☆   JAIA F☆☆☆☆ 4VOC   JAIA F☆☆☆☆ 4VOC JAIA F☆☆☆☆ 4VOC
Capacity 1kg 20kg 18kg 20kg 20kg 20kg 20kg
3kg
20kg
Check it at Online-Shop OnlineShop

Property (For prevention of package deformation)

  For prevention of package deformation
EMPS50 CO-02T
Application / Properties / Features For sticking and bonding, Peel-up type For sticking and fixing plastics
Base Acryl Acryl
External appearance Milky white solution Milky white solution
Non volatiles % 60 58
Viscosity mPa・s 5,000/23℃ 500≧/30℃
pH 8 8
Grade JAIA F☆☆☆☆
Capacity 10kg 18kg

Description of the markexplanation
