Polyolefin adhesion systemCEMEDINE PPX SET (Instant Adhesives + Primer)

Polyolefin adhesion system

Adhesion of adhesion-resistant materials such as polyethylene, polypropylene, silicone rubber, polyacetal and fluorocarbon resin in a short time. (Combined use of surface modification primer PPX-3 and Instant Adhesives Cemedine PPX)

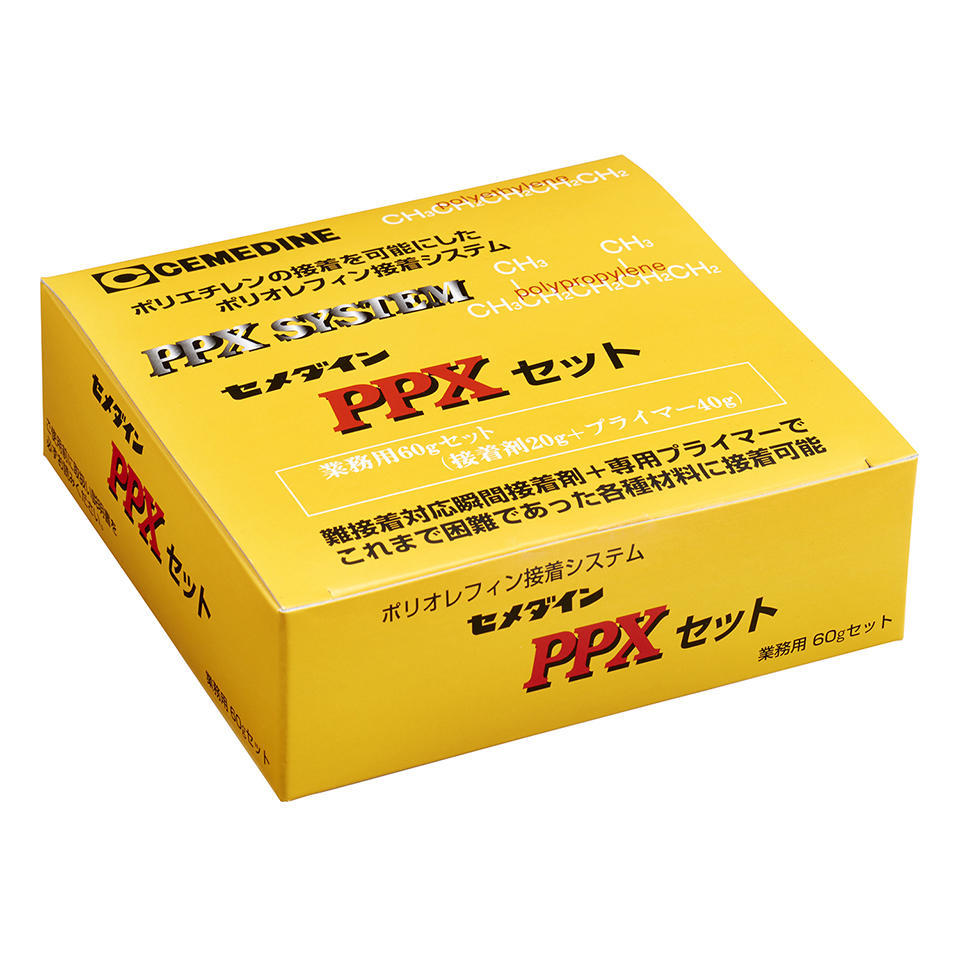

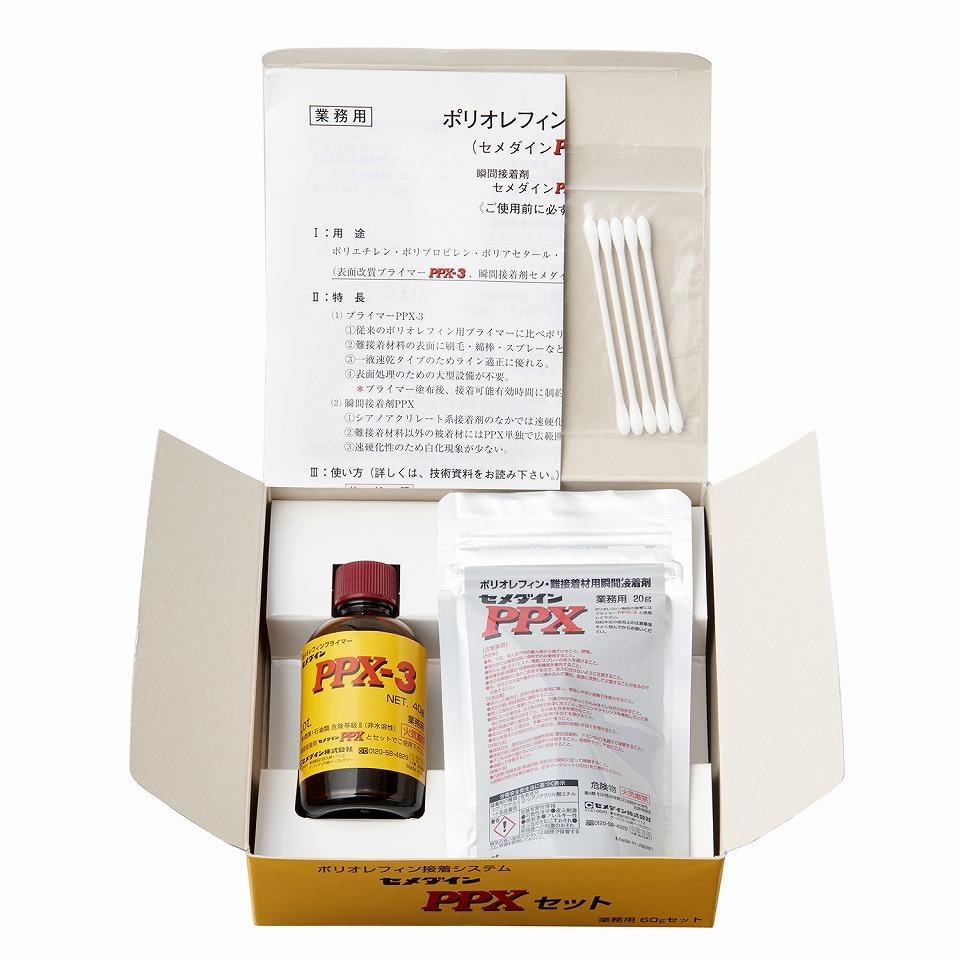

PPX SET

PPX SET

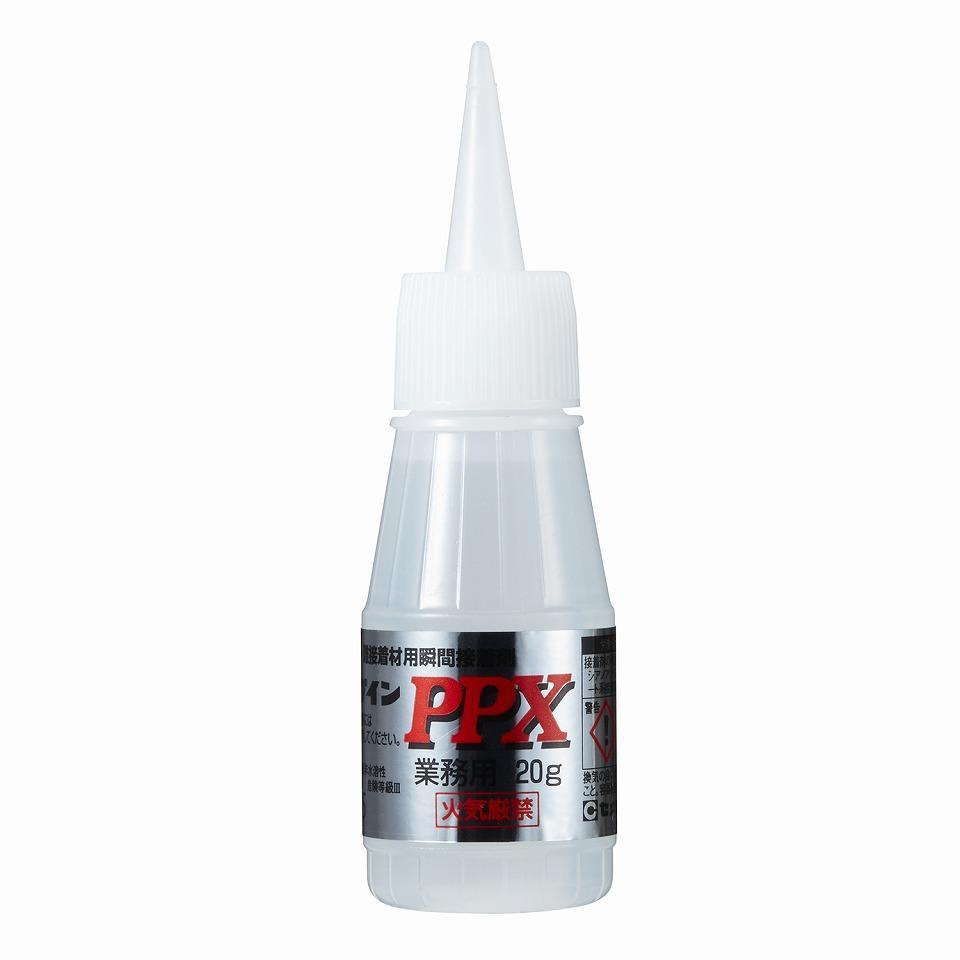

CEMEDINE PPX (Instant Adhesives)

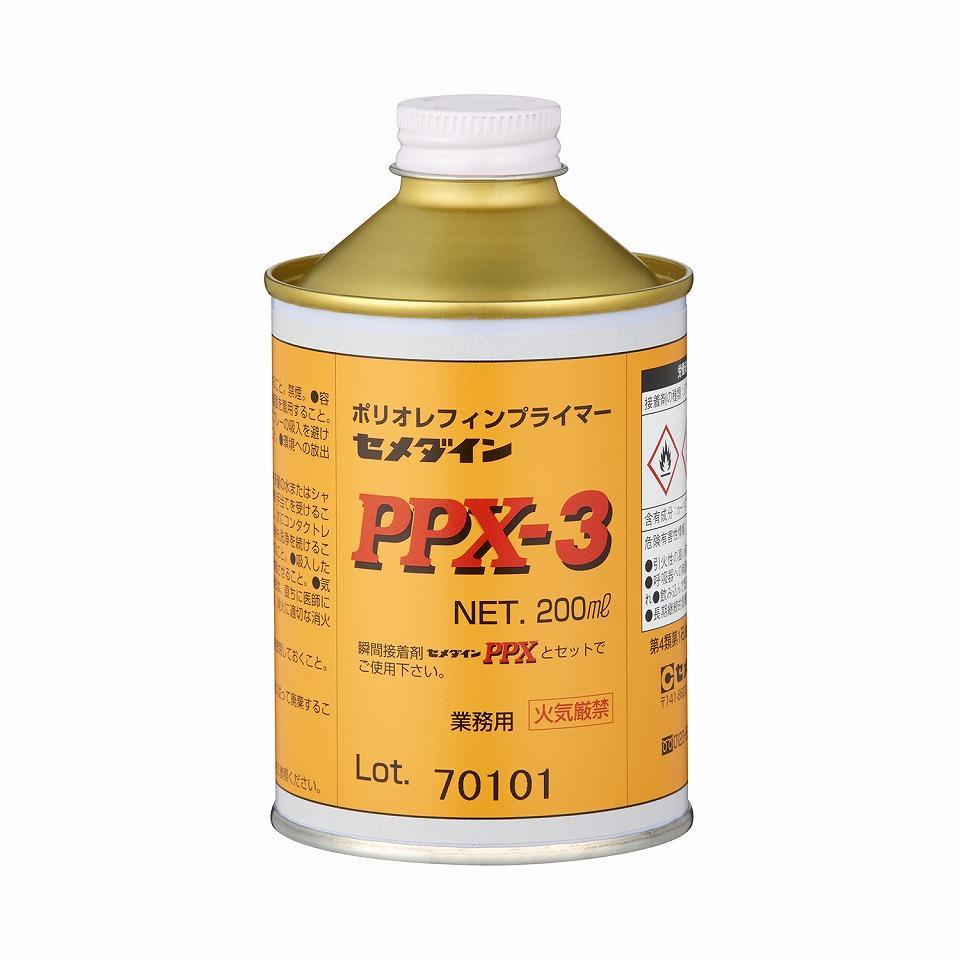

PPX3 (Primer)

Features

  • Instant Adhesives (CEMEDINE PPX)
    Shows superior high-speed curing property.
    Broader adhesive range is made possible with PPX only.
  • Primer (PPX-3)
    Performance improvement of adhesion to polyethylene is far superior.
    Surface coating is simply formed by painting with cotton swabs, brush and sprays.

Product data

Durability / chemicals resistance

(MPa)
Tensile shear adhesive strength PP HDPE LDPE
Normal state adhesive strength 5.5* 4.5* 1.6*
Durability Heat resistance 70°C for 7 days 4.8* 3.7 1.7*
Water resistance 40°C for 7 days 5.4* 4.4* 1.6*
Moisture resistance 60°C,95％RH×7days 5.2* 3.9 1.4*
Heat cycle
(-30°Cx3hours+70°Cx3hours)x10cycles		 5.3* 4.2* 1.7*
Chemical resistance Gasoline 25°C for 7 days 4.6* 3.9* 1.3
Kerosene 25°C for 7 days 4.9* 3.9* 1.5*
Methanol 25°C for 7 days 5.4* 2.8 0.7
Window washing liquid 25°C for 7 days 5.3* 4.4* 1.6*
*…indicates material failure

Property

  PPX SET (For difficult to bond materials)
Instant Adhesives
CEMEDINE PPX		 Primer
PPX-3
Application / Properties / Features For Polyolefin
External appearance Colorless transparent Colorless transparent
Flash point °C 85 -1
Ignition point °C 485 215
Freezing point °C ≤-20 ≤-20
Viscosity mPa･s/23°C 10 ≤1
Specific gravity g/cm3 1.05 0.68
Set time 23°C 5 s
Tensile shear adhesive strength (PP) MPa 5.5 MF
Application method Apply right from the container Cotton swabs,Brush
Capacity 60g set
20g 200mL
Check it at Online-Shop OnlineShopMark

Check it at Online-Shop

※　The link destination is an external site.

※　The link will be broken due to the circumstances of the link seller.

Description of the mark

This mark means that products comply with RoHS Directiverequirements.

This mark means that products comply with Japanese formaldehyde emission standards for adhesives. These are set forth by the Japanese Industrial Standards (JIS) or Japan Adhesive Industry Association (JAIA).

This mark means that products comply with Japanese Voluntary VOC Regulating Rule for Indoor Air Pollution Control. These are set forth by Japan Adhesive Industry Association (JAIA).

This mark is a self-management mark for people and environmentally friendly products. We provide products that address environmental and health concerns, mainly for construction and housing applications.
