Second Generation Acrylic adhesive | Reactive Acrylic AdhesiveCEMEDINE Metal Lock Series

Reactive Acrylic Adhesive

The two-part acrylic adhesive, whose curing properties do not change much even if the mixing ratio and mixing status vary, has user friendliness almost equal to that of one-part adhesive.

Features

  • Reactive acrylic adhesive has the robust strength of a structural adhesive.
  • Reactive acrylic adhesive is cured quickly.
  • Reactive acrylic adhesive contains no inflammable solvent.
  • Reactive acrylic adhesive does not have as bad an odor as a conventional acrylic adhesive.
  • Reactive acrylic adhesive causes almost no skin irritation. unlike epoxy adhesive.
  • The adhesive property of reactive acrylic adhesive is unchanged, even on a slightly oily surface.

Application

  • Assembly of building members
  • Assembly of signboard
  • Assembly of furniture
  • Adhesion and assembly of automotive and vehicle parts
  • Assembly of magnets
  • Assembly of sports goods

Product data

Adhesive properties for various types of adherends (Metal Lock / Miracle Ace)

(MPa)
Adherent Tensile shear strength
Metal SUS304 24.7
Titanium (JIS 2 types) 23.6
SPCC 22.8
Brass 22.8
Copper 17.4
Aluminum 19.8
hot-dip galvanized 25.6
Galvanized 23.7
Chrome plating 11.2
Tin plating 21.9
Carbon Diamond-like carbon deposition a) 21.8
Aramid fiber b) 22.5
PAN-based carbon fiber b) 19.9
CFRP (Resin : Epoxy) 17.8
Plastics Acryl 4.0
PC 1.7c)
ABS 5.3
PS 2.5
66-nylon 0.8
Bakelite 7.9
PVC 5.2
Wood Lauan plywood 6.5
beech wood 8.2

a) Diamond-like carbon deposition : Deposition between SPCC substrates
b) Aramid fiber and carbon fiber : SPCC/adhesive/carbon/adhesive/SPCC
c) Product with excellent PC adhesive property : Y616 (7.0)

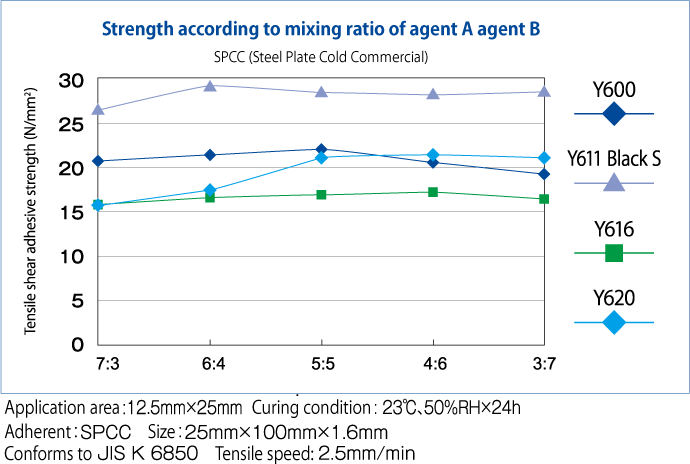

Adhesive strength by mixing ratio

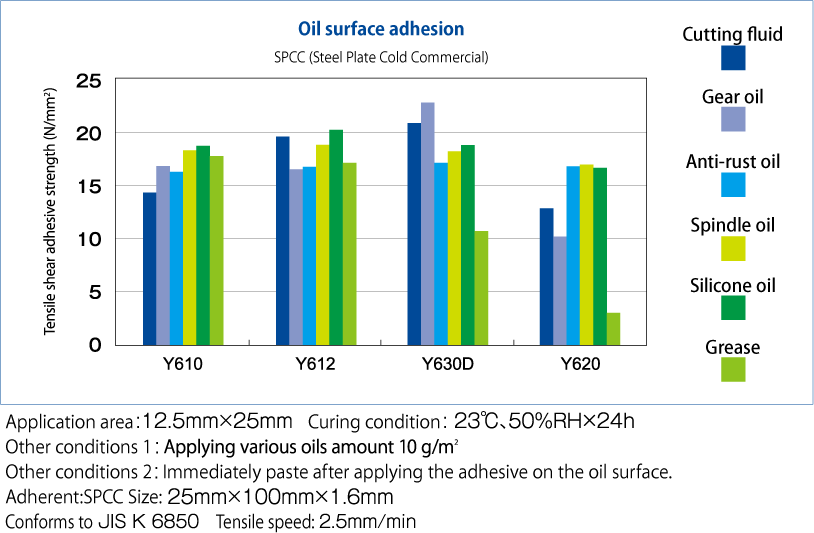

Oil surface adhesion

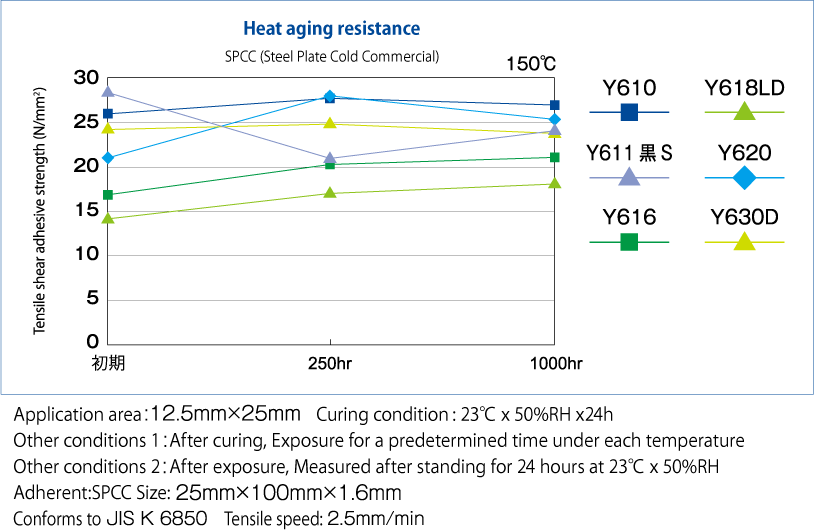

Heat aging resistance

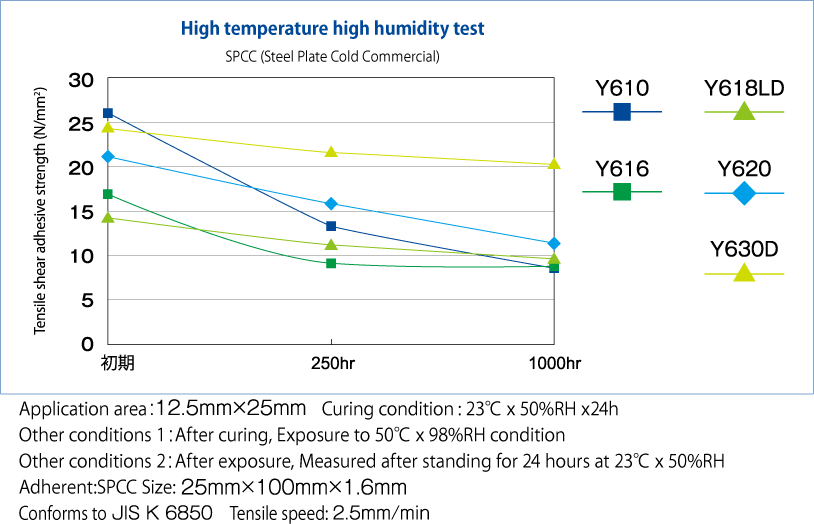

High temperature high humidity durability

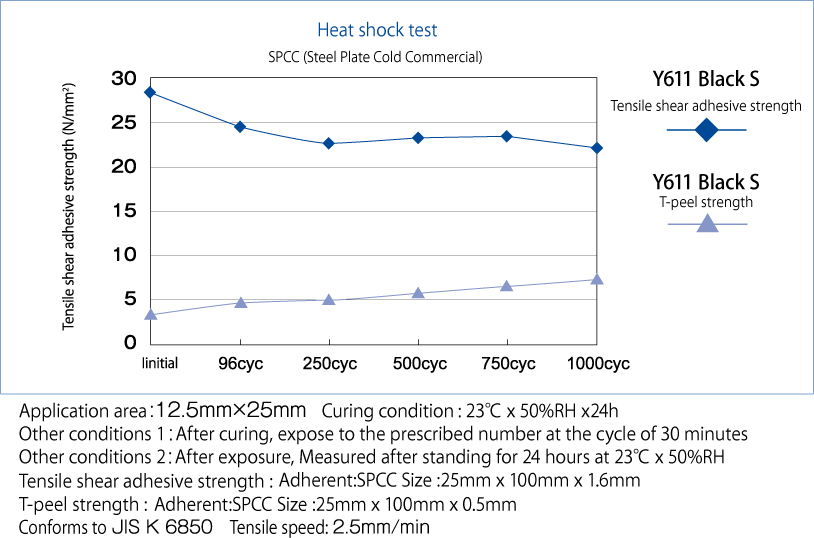

Heat shock testing

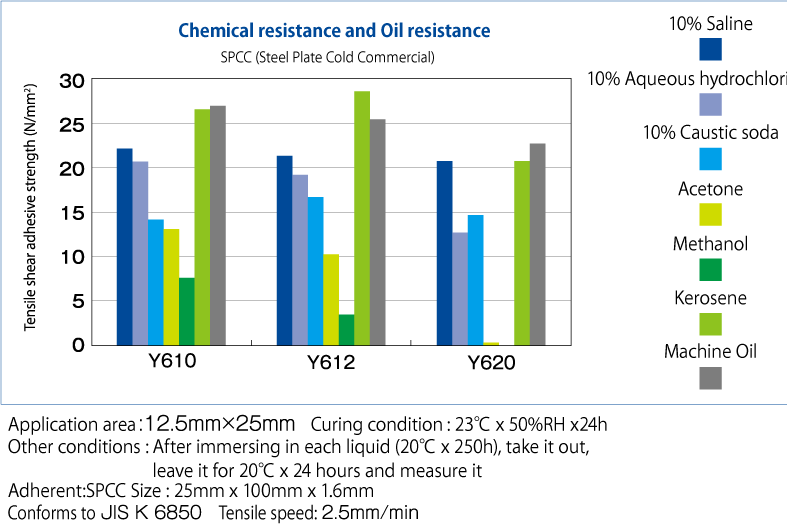

Chemical resistance

Property

Multi-purpose type

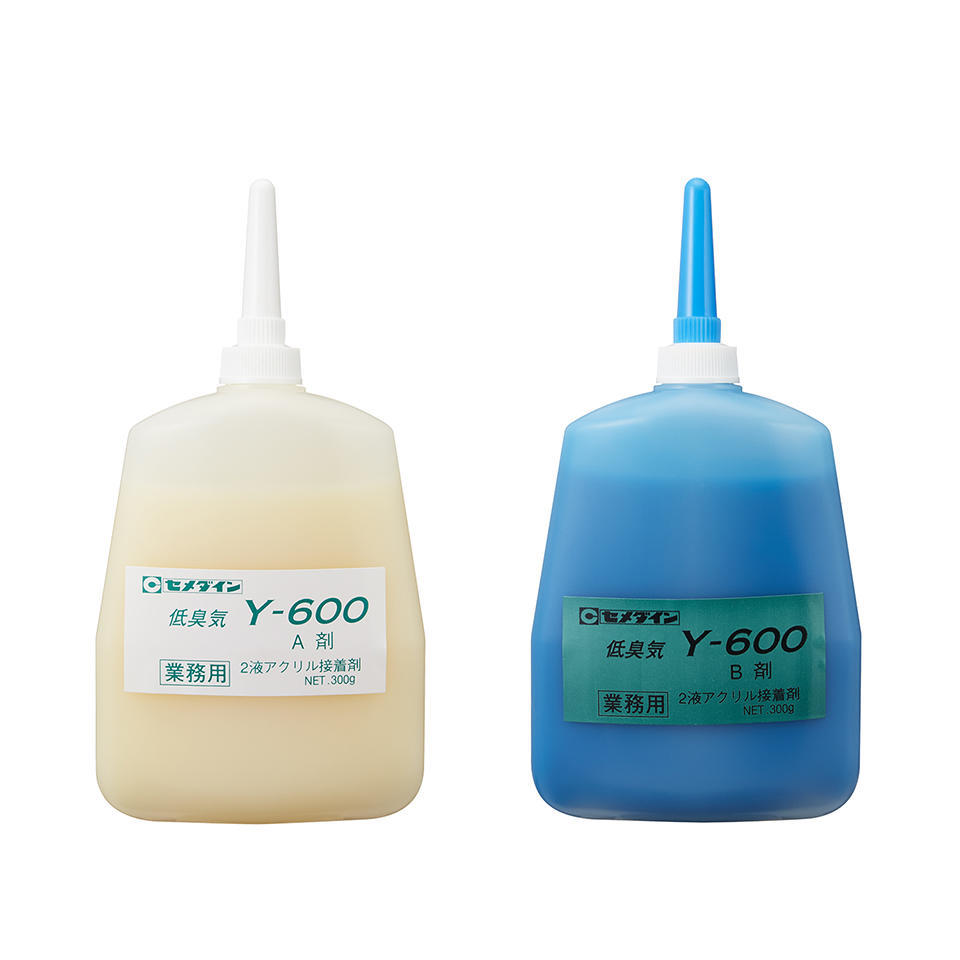

Metal Lock / Miracle Ace Y600 Y600H Y610 Y620
Agent A Agent B Agent A Agent B Agent A Agent B Agent A Agent B Agent A Agent B
Application / Properties / Features High toughness/ Standard High speed curing High viscosity High strength Slow curing
Base Acrylic resin Acrylic resin Acrylic resin Acrylic resin Acrylic resin
External appearance Light yellow Blue Light blue Blue White Gray White Gray Light yellow Blue
Viscosity mPa・s/23°C 10,000 10,000 4,000 4,000 30,000 30,000 5,500 5,500 8,000 8,000
Mixing ratio 1:1 1:1 1:1 1:1 1:1
Pot life *1 23°C 2 min 30 s 2 min 3 min 6 min
Set time *2 23°C 5 min 3 min 4 min 6 min 20 min
Adhesive property Tensile shear strength MPa 23.0 23.2 19.4 26.0 21.1
T-peel strength N/mm 3.3 5.0 3.6 3.7 4.2
Curing properties Hardness Shore A 77 68 65 72 66
Glass transfer point °C 87 83 78 90 79
Elastic modulus MPa 1250 767 742 935 778
Breaking strength MPa 34.2 16.2 14.0 19.0 16.1
Elongation at break % 8 26 8 6 25
Capacity 25g set 600g set 50g set 50g set 600g set
200g set 2kg 10kg 600g set 2kg
10kg/BIB
Check it at Online-Shop OnlineShop OnlineShop OnlineShop OnlineShop OnlineShop

*1 : After mixing agents A and B, immediately use the mixture to bond the materials (the pot life is an estimate).
*2 : Set time = Time required for the materials to adhere so that they will not peel off even when a tensile shear load of 5 kg is applied (SPCC steel plates with a size of 25 mm×100 mm×1.6 mm bonded with a lap length of 12.5 mm).

High heat resistance type

Y611BLACK S Y612BLACK
Agent A Agent B Agent A Agent B
Application / Properties / Features Hight strength / High heat resistance
Base Acrylic resin Acrylic resin
External appearance Light yellow Black Light yellow Black
Viscosity Pa・s/23°C 3,000 3,000 15,000 15,000
Mixing ratio 1:1 1:1
Pot life *1 23°C 3 min 1 min
Set time *2 23°C 7 min 3 min
Adhesive property Tensile shear strength MPa 28.4 29.2
T-peel strength N/mm 4.2 4.3
Curing properties Hardness Shore D 84 86
Glass transfer point °C 123 127
Elastic modulus MPa 1558 1615
Breaking strength MPa 32.9 33.7
Elongation at break % 3.5 3.2
Capacity 600g set 600g set
10kg/BIB 10kg/BIB
Check it at Online-Shop OnlineShop

*1 : After mixing agents A and B, immediately use the mixture to bond the materials (the pot life is an estimate).
*2 : Set time = Time required for the materials to adhere so that they will not peel off even when a tensile shear load of 5 kg is applied (SPCC steel plates with a size of 25 mm×100 mm×1.6 mm bonded with a lap length of 12.5 mm).

For Plastics

Y616
Agent A Agent B
Application / Properties / Features For resin bonding
Base Acrylic resin
External appearance Light yellow Light green
Viscosity Pa・s/23℃ 5,000 5,000
Mixing ratio 1:1
Pot life *1 23°C 4 min
Set time *2 23°C 7 min 30 s
Adhesive property Tensile shear strength MPa 17
T-peel strength N/mm 3.7
Curing properties Hardness Shore D 65
Glass transfer point °C 39
Elastic modulus MPa 559
Breaking strength MPa 10.1
Elongation at break % 6.3
Capacity 50g set
600g set
Check it at Online-Shop OnlineShop

*1 : After mixing agents A and B, immediately use the mixture to bond the materials (the pot life is an estimate).
*2 : Set time = Time required for the materials to adhere so that they will not peel off even when a tensile shear load of 5 kg is applied (SPCC steel plates with a size of 25 mm×100 mm×1.6 mm bonded with a lap length of 12.5 mm).

Flexible type

Y618LD Y618H Y630D
Agent A Agent B Agent A Agent B Agent A Agent B
Application / Properties / Features Flexible / Low distortion Hight strength / High heat resistance
Base Acrylic resin Acrylic resin Acrylic resin
External appearance Red Blue Light yellow Light green Light yellow Light green
Viscosity Pa・s/23°C 5,000 5,000 15,000 15,000 4,000 4,000
Mixing ratio 1:1 1:1 1:1
Pot life *1 23°C 2 min 2 min 30 s 1 min 30 s
Set time *2 23°C 7 min 10 min 4 min 30 s
Adhesive property Tensile shear strength MPa 14.2 15.7 25.3
T-peel strength N/mm 5.9 5 4.6
Curing properties Hardness Shore D 47 55 83
Glass transfer point °C 61 118
Elastic modulus MPa 451 2414
Breaking strength MPa 10.5 10.6 32.1
Elongation at break % 40 51 2
Capacity 50g set 190mL set 600g set
600g set
4kg
10kg/BIB
Check it at Online-Shop OnlineShop

*1 : After mixing agents A and B, immediately use the mixture to bond the materials (the pot life is an estimate).
*2 : Set time = Time required for the materials to adhere so that they will not peel off even when a tensile shear load of 5 kg is applied (SPCC steel plates with a size of 25 mm×100 mm×1.6 mm bonded with a lap length of 12.5 mm).

Conventional type SGA Y650 (*Odorous)

Y650
Agent A Agent B
Base Acrylic resin
External appearance Blue Red
Viscosity mPa・s/23°C 3220 3320
Mixing ratio 1:1
Pot life *1 23°C 2 min 30 s
Set time *2 23°C 4 min 30 s
Adhesive property Tensile shear strength MPa 23.8
T-peel strength N/mm 4.6
Curing properties Hardness Shore D 60
Glass transfer point °C 83
Elastic modulus MPa 740
Breaking strength MPa 16.1
Elongation at break % 25
Capacity 2.5kg

*1 : After mixing agents A and B, immediately use the mixture to bond the materials (the pot life is an estimate).
*2 : Set time = Time required for the materials to adhere so that they will not peel off even when a tensile shear load of 5 kg is applied (SPCC steel plates with a size of 25 mm×100 mm×1.6 mm bonded with a lap length of 12.5 mm).
